Figure 1 Example of small precision aluminum profile The precision aluminum profile for the potentiometer has a section """ with a weight of 30 g/m and a cross-sectional dimension tolerance of ±0 07 mm. The precision aluminum profile for the loom is “■â€, the section dimensional tolerance is ±0.04mm, the angular deviation is less than 0.5°, and the bending is 0.83×L. Figure 2 Example of dimensional tolerances for precision aluminum profiles Dimensions / mm Dimensions allow tolerance / mm Figure 3 Factors affecting the accuracy of extruded profiles Next page
Metal table lamp,
the whole is mainly made of metal materials, suitable for bedroom, living room,
office, study and other indoor places. Modern and simple design, diverse
modeling, whether placed in the home or office, can be well integrated into the
environment, suitable for decoration joker. Made of metal, it doesn't look
bulky, and the overall line looks very smooth. In addition to playing the role
of lighting, in the case of decorative space effect, whether the light is on,
or off, is a work of art.
Golden Table Lamps,Big Metal Lamps,Black Metal Table Lamps,Brass Table Lamps INSHINE LIGHTING CO.,LTD , https://www.inshinelight.com
Key words : aluminum alloy; precision extrusion; technical requirements
Many modern industrial equipment such as precision instruments and parts of weak current equipment require small, thin-walled aluminum profiles with very precise cross-section dimensions, and their dimensional tolerances are very strict. The profile has a minimum wall thickness of only 0.4 mm and a tolerance of ±0.04 mm. The extrusion production process requires strict equipment, tools and processes. This extrusion technique is often referred to as precision extrusion [1-3].
1 Examples of precision aluminum extrusion profiles
Some small precision aluminum profiles have tolerances that are less than half the tolerances of the special grades in the JIS standard. Generally, precision aluminum profiles require dimensional tolerances between ±0.04 and ±0.07 mm. A section of some small precision extruded aluminum profiles is shown in Figure 1.
A1050, A1100, A3003, A6061, A6063 (low and medium strength alloy) small precision extruded profiles have a minimum wall thickness of 0.5 mm and a minimum sectional area of ​​20 mm2. A5083, A2024, A7075, (medium and high-strength aluminum alloy) small precision extruded profiles have a minimum wall thickness of 0.9mm and a minimum sectional area of ​​110mm2.
An example of the dimensional tolerance of a small precision aluminum profile is shown in Figure 2.
JIS special grade small, precision A 2.54 ±0.15 ±0.07
B 1.78 ±0.15 ±0.07
C 3.23 ±0.19 ±0.07
2 precision extrusion technology requirements

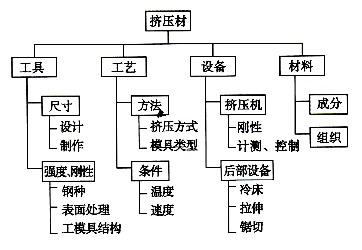

Generally speaking, the degree of hot extrusion deformation of aluminum alloy, the change of extrusion temperature and speed, the alignment of the extrusion equipment, the deformation of the tooling, etc. all easily affect the accuracy of the profile size, and their mutual influence factors are difficult. get over. Figure 3 shows the factors that influence the precision extrusion.
2.1 Requirements for tooling
The mold is the most direct factor affecting the dimensional accuracy of the extruded product. To ensure that the cross-sectional dimension of the extruded product is constant or small during production, the rigidity, heat resistance and wear resistance of the mold must meet certain requirements.
Abstract : This paper introduces the characteristics and technical requirements of precision extrusion of aluminum alloy, as well as some examples of small precision aluminum alloy profiles.
